Manure Dryer Machine

The purpose of chicken manure dryer is to dry the chicken manure and add chemical fertilizer in it to make fish feed and fruit tree feed...

Counseling hotline: 0086 - 0372 2072505

Recommend similar products for you

Batch?
Features

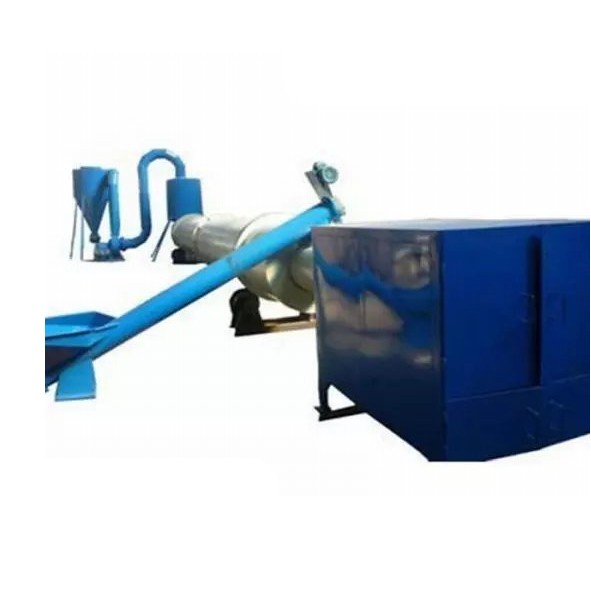

AOLS Provide Drum Manure dryer machine is mainly used for drying materials with some moisture and granularity in ore beneficiation, building material, metallurgy and chemical department. Drum dryer has high adaptability to the materials so that it can be used for drying all kinds of materials, and in addition, the operation of this equipment is simple and reliable, for this reason, it gets wide application.


Manure dryer Machine  Feature:

1.The raising material plate with reasonable distribution and angle,

2.with reliable performance,that high efficiency on heat power, Uniform on dry.,less time on cleaning machine,.convenient in maintenance .

3.Machine adopted Tug-aligning type structure,tug working well with the tyre-roller,greatly reduce the wear and power consumption.

4.This equipment specialized in the design of catch wheel structure, and greatly reduce the horizontal thrust which cause for the equipment tilt to work

5.Strong resistance to overload , operating smoothly and high reliability

6.With high heat resisting ,can use high temperature and heat wind for rapid drying,strong extensible ability.

7.The design of drum dryer considering the production margin, even a small increase in production, and do not need to replace equipment.




Parameter

Model

Drum body dia.(mm)

Feeding size(mm)

Feed  humidity

Output humidity

Evaporation capacity(kg/h)

Motor power (kw)

Dimension

(m

Φ 0.6*6 m

600

2~20

10~80%

5%

200-400

7.47

12*1.5*3.5

Φ 0.8*8m

800

2~20

10~80%

5%

300-600

13.2

14*1.8*4

Φ 1*10m

1000

2~20

10~80%

5%

400-700

17.5

15*2*4

Φ 1.2*12m

1200

2~20

10~80%

5%

500-800

24.2

16*2*4.5

Φ 1.5*15m

1500

2~20

10~80%

5%

600-900

32.2

19*2.5*4.5

Φ 1.8*18m

1800

2~20

10~80%

5%

700-1000

37.5

22*2.5*4.5

Φ 2*20m

2000

2~20

10~80%

5%

800-1100

42.2

26*3*4.5
