Product description:

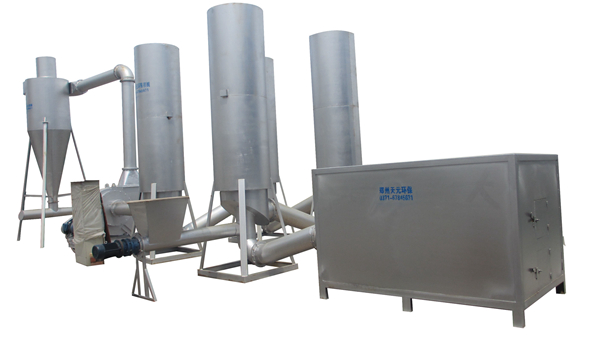

Airflow Sawdust Dryer is a quality equipment which market for drying light materials , improve design combined with the actual characteristics of drying light material , but also according to the actual production needs of the replacement on heat sources can be used firewood , Gas, electricity as heat source.

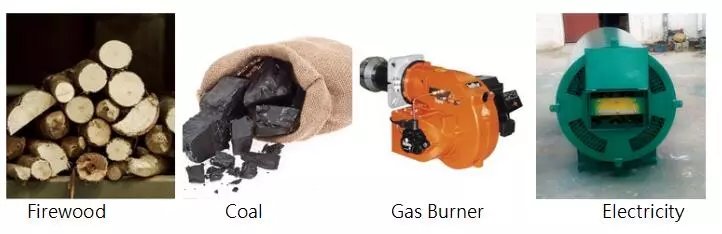

热源:可以四种选择

Airflow Sawdust Dryer Advantage :

1. High efficiency and high output;

2.high Drying capacity, raw materials can be a one-time drying;

3. High yield, low energy consumption;

4.Can be assembled according to the size of the site.


Working Principle:

Airflow Sawdust Dryer adopts the secondary heating cycle system. The material is feed into the dryer through the feed screw conveyor. The hot air produced by the heating furnace is sucked into the dryer sandwich through the fan. The material is not directly contacted with the hot air. The material in the drying process of carbonation phenomenon, in the drying process, the material moisture be evaporated through moving, to meet the drying requirements.


Usage:

Airflow Sawdust Dryer is suitable for drying all kinds of light materials, such as sawdust, wood flour, shavings and other granular, powder materials drying operations, widely used in mechanism charcoal plant, wood flour processing plants.


Parameter

Airflow Sawdust Dryer Technical Parameter:

Model

ASD-219

ASD-325A

ASD-450

ASD-650

ASD-950

ASD-1300

Drying Cylinder (mm)

219

325

450

650

950

1300

Feeding size (mm)

≤3

≤3

≤3

≤3

≤3

≤5

Feed Humidity %

10%~80%

10%~80%

10%~80%

10%~80%

10%~80%

10%~80%

Output humidity  (≥)

5%

5%

5%

5%

5%

5%

Capacity (kg/h)

500

600

1000

1500

2500

3500

Power(m)

4

5.5

6.25

19.25

33.3

50.2

Weight(m)

700

900

1550

5500

7500

11000

Dimension (m)

5*1.4*3

6*.15*3

6*1.5*4

8*1.5*4

15*2.5*5

20*4*5
