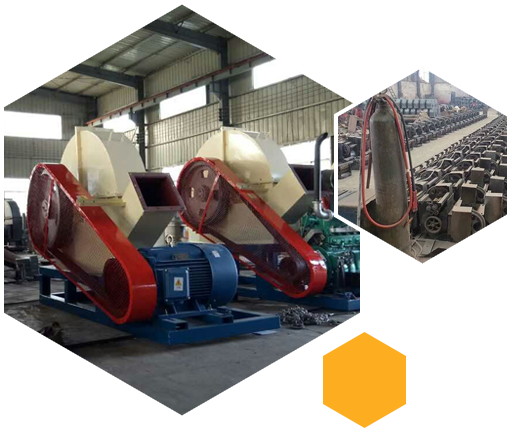

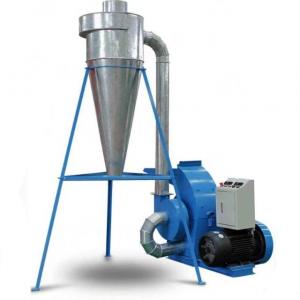

Energy saving Sawdust Machine

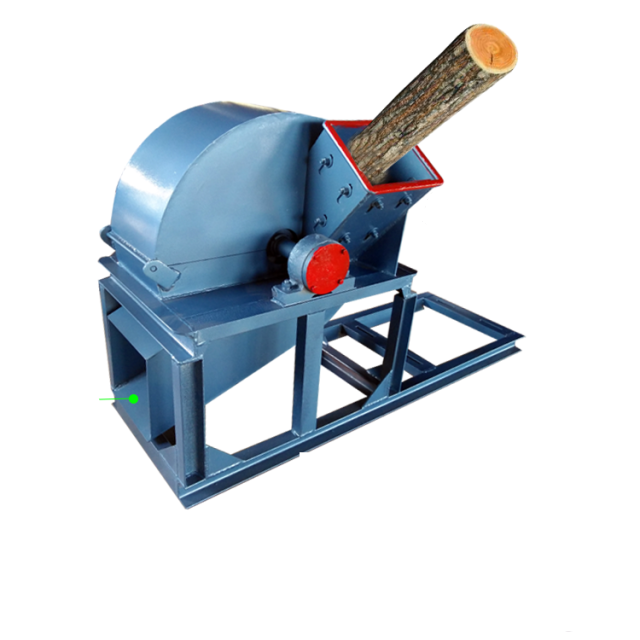

sawdust crusher is one log crusher machine ,crushing wood log into sawdust ,size adjustable...

Counseling hotline: 0086 - 0372 2072505

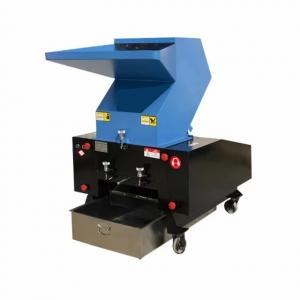

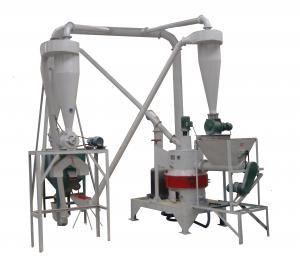

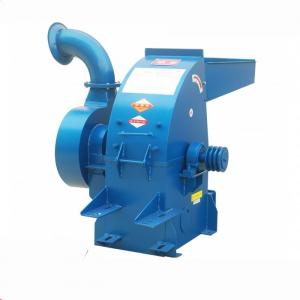

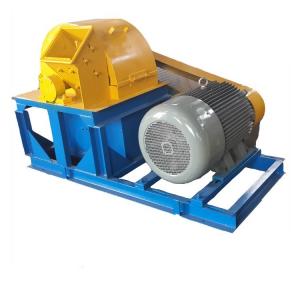

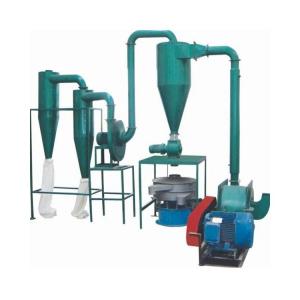

Recommend similar products for you

Batch?
Features

Wood sawdust machine also called Wood crusher it is one of specialized equipment produce sawdust,It is extensively applied in the material-preparing process of pulp paper making ,mushroom cultivation,sawdust briquette, sawdust compressed board,OSB,MDF,HDF board etc industrial .can processing material can be log,tree branch,into sawdust one time,with low cost,low consumption,high production,Good economic benefits, easy maintenance.



Suitable material :

Can process wood like Pine, miscellaneous wood, poplar, fir, bamboo etc.Compact simple,small area occupied,good quality chips,low power consumption; Suitable for mobile operation,  can also be used for self-employed for the production of wood sawdust.



Working principle:

When the machine work,material feed by the side feeding hole,the blade fast slice material into chips,and chips enter into chamber will crushing into sawdust by high-speed rotating hammer ,finally sawdust will be send out by high-speed fan blade.


Parameter

Model

B400

B600

B800

B1000

Cutter Disc Dia.(mm)

400

600

800

1000

Power (kw)

11

15

30

55

Blade (Pcs)

4

4

4

8

Hammer (pcs)

12

12

32

60

Feed opening size. (mm)

150×150

160x160

220x220

300×350

Max.feeding Dia.mm

110

150

200

300

rotating speed(r/min

500

450

400

500

Final size (mm)

1-20mm

1-30mm

1-40mm

1-40mm

Output (t/h)

0.3-2

0.4-3

1-4

2-6
