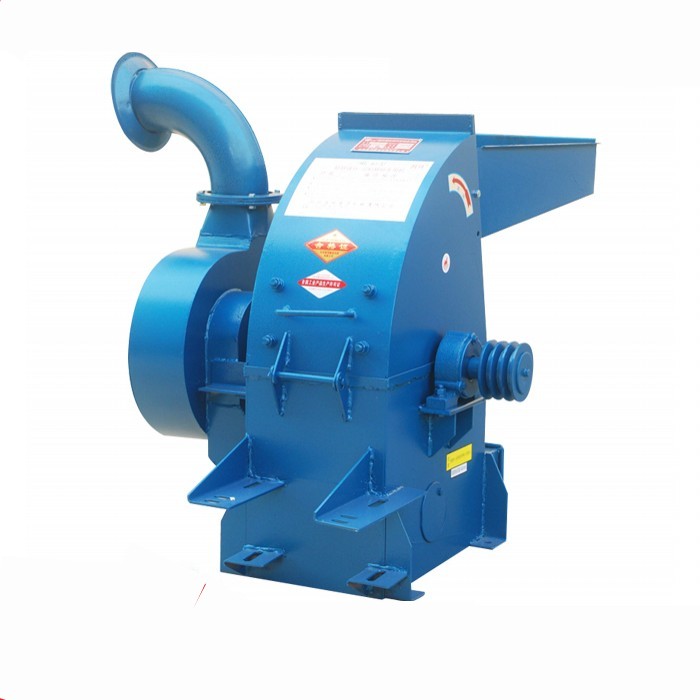

Homemade Hammer Mill:

This series of hammer crusher is tangential feed hammer type crusher that can crush all kinds of dry feed.

1.Raw material :can be corn, wheat and other food, corn stalk, beans stalk, peanut vine crops straw, also can crush raw wood edible raw materials such as wood chips.

2.Simple structure, high production efficiency, convenient operation, use and reliable, easy maintenance, suitable for agriculture, animal husbandry processing.

3.Machine can be drive by motor, diesel engine, tractor is used.

4.Machine can crush medicinal materials, quartz , coal and other pharmaceutical raw materials and industrial raw materials.


Parameter

Hammer Mill Technical Parameter :

Model

HM360

HM400

HM420

HM500

HM700

HM800

Speed r/min

3800

3800

3800

3440

3500

3440

Rotor Diameter(mm)

360

400

420

500

500

500

Hammer

16

16

24

24

36

32

Power (kw)

5-7.5

7.5

7.5-10

11-15

15-22

22-30

Weight(kg)

75

90

110

180

300

500

Bearing

307

307

307

310

310

311



Production Capacity:

Raw Material

360

400

420

500

Screen Size Φ

Fresh Potato Powdering

300-400

400-500

500-700

800-1000

4 mm

Corn

350-450

400-500

450-550

600-700

2.5 mm

Soybean stalk

120-180

150-200

200-250

300-400

2.5 mm

Potato Seeding

200-250

250-300

300-400

400-500

3 mm

Corn Stalk

120-150

140-160

160-180

250-300

3 mm

Bran

130-180

150-210

160-230

280-350

2.5 mm
