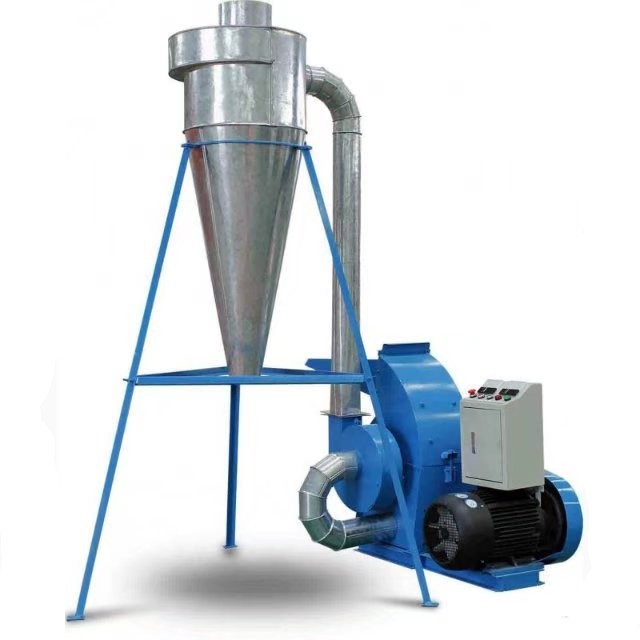

Wood Branch Crusher

Wood Branch Crusher:Wood Hammer mill were a kinds of high speed Sawdust Making Machine for crushing dry and wet Wood remains,forest residues (such as dead trees, branches and tree stumps), stalk,straw...

Counseling hotline: 0086 - 0372 2072505

Recommend similar products for you

Batch?
Features

Wood Branch Crusher:

Wood Hammer mill were a kinds of high speed Sawdust Making Machine for crushing dry and wet Wood remains,forest residues (such as dead trees, branches and tree stumps), stalk,straw ,yard clippings, wood chips,other similar material into sawdust .Final sawdust were used for converted into bio-fuels like pellet or charcoal.,support to making briquette,pellet,composting fertilizer,cultivated mushroom.


Feature :

1.Diesel engine can replaced electric motor power,Solve the problem for mountains and forest farm without power.

2.This Wood Branch Crusher can crushing dry and wet material ,can crushing tree branch diameter at 1-20 cm into sawdust,it is the most popular tree branch crushing equipment.

3.The crushed sawdust can be used as fertilizer for tree .

Used for process Bamboo, straw, corn stalks, sorghum stalk fiber stem materials .

4.Material can be Pine, miscellaneous wood, poplar, fir, bamboo etc.more suitable for mushroom cultivation base.

5.Machine also can make raw material for produce shaving board, sawdust board, HDF.

 This series of equipment is suitable for flow operation

6.Widely used in small and medium particleboard and fiberboard production enterprise preparation section, also can be used for self-employed for production sawdust.

Working Principle :

The hammer mill adopts blade cutting and high-speed airflow impact, hitting double crushing function in one,can complete the material sorting process at same time .during cutting and crushing,he rotor produced high-speed air,rotating  with the blade cutting direction,materials shall be accelerated,and repeated impact  at the same time by double crushing, speed up the material crushing rate.


Parameter

Wood Branch Crusher Technical Parameter:

Model

FS40

FS60

FS80

FS100

FS120

Hammer (pcs)

16

24

32

60

80

Power (kw)

5.5

7.5

22

55

75

Feeding open size(mm)

400*250

500*300

600*350

800*450

1000*550

Max feeding dia.(mm)

30

40

50

80

100

Final size(mm)

1-20

1-30

1-40

1-40

1-40

Output capacity(t/h)

0.3-0.8

0.4-1.2

0.7-2

1-4

1.5-8

Dimension (m)

1.5*1*0.9

1.8*1.1*1.1

4*1.8*3.5

7*2.2*4

8*2.5*4
