Features

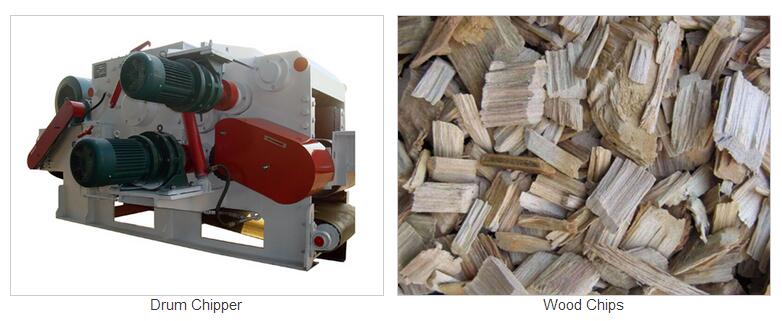

Drum Chipper Machine:

Drum Chipper Machine are the specialized equipment for wood chips production.

This product is the ideal chipper which were widely used in the manufacturing plant,such as biomass power plant,Medium and High density fiberboard plant, Pulping paper mill,wood chips plant etc.


This kind of Drum chipper mainly used to chip the small diameter wood, wood cutting remains (wood branching tree stumps, branches, etc.) and wood processing of raw material (slab, lath, logs core, waste veneer, etc) and it also can be used to cutting non-wood material like sugarcane dry, reed, bamboo, etc.

drum chipper

Drum Chipper Feature:

√ Drum Chipper Used for wood pulp for chemicals,and milling wood pulp.

√ Widely used in shaving board, biomass power plant,chipboard and paper mills

√ Professional manufacturer,competitive price

√ Safety and reliable,Easy maintenance,most advanced chipper machine

√ Advanced feature,automatable, High output capacity

√ Package with a motor-driven.

√ Raw material can be slab, lath, logs core, waste veneer, etc

√ Can Equipped with wheels,can move

AAEAAQAAAAAAAAbvAAAAJGYzNzg0MDFhLWQ0YzQtNDRlMi04MzJjLWMzYjc5ODZhNjI3Nw_conew1


Parameter

ModelDC-215DC-216DC-218DC-2113
Feeding size160*400 mm230*500mm300*680mm450*700mm
Knife (Pcs)2222

Cutter roller speed (r/min)

592590650500

Max feeding diameter

160mm

230mm

300mm

450mm

Chips size

30mm

30mm30mm30mm

Capacity (Ton)

3-47-812-1515-30

Machine power

45kw55kw110kw200-250kw

Conveyor powe

1.5kw *2

3kw *24kw *27.5kw *2

Oil pump power

1.1kw

1.1kw1.1kw

3kw

Weight (kg)

2990

4070

7000

11840

Dimension (mm)

1470*1550*970

1800*1900*1210

2200*2150*1500

3670*2517*2050
