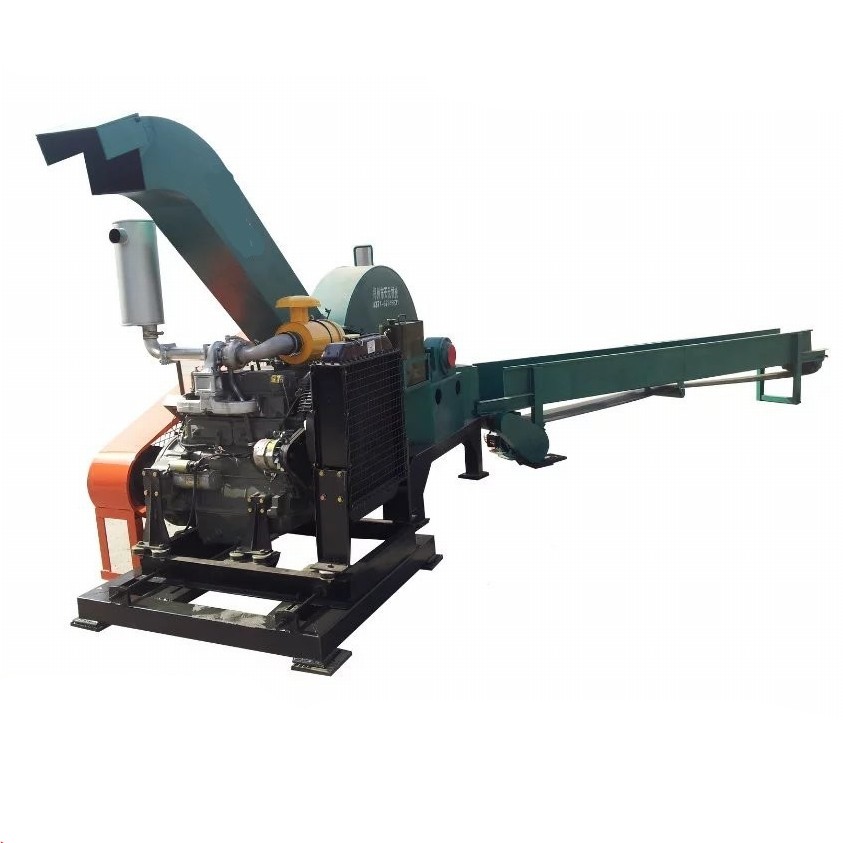

Wood chipper with conveyor

1.Wide choice on raw material;
2. Large production capacity, high work efficient;
3. Durable blade,long service time....

Counseling hotline: 0086 - 0372 2072505

Recommend similar products for you

Batch?
Features

Wood Chipper with Conveyor:

Large disc wood chipper motor drive were developed on the basis of small disc chipper ,can processing wood in big diameter below 60cm into wood chips,compared with capacity ,disc chipper with low cost than drum chipper



Feature:

1. Wide choice on raw material

2. Large production capacity, high work efficient,

3. Durable blade,long service time

4. Simple operation,easy to maintenance

5. Machine Can customized as per client.

mmexport1499044916160

Application:

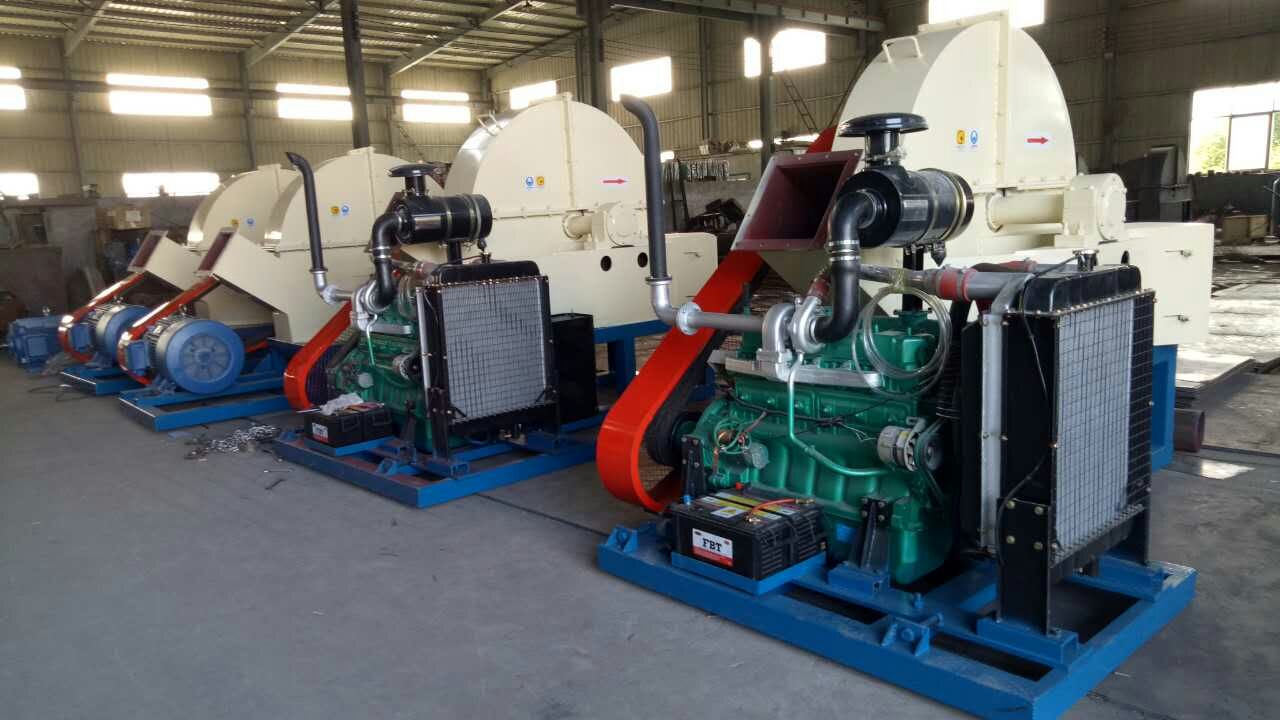

Large wood chippers are suitable for process large diameter wood ,or have high output requirement on production of wood chips , widely used in paper mills, sheet board processing and commercial wood chip processing. It is also used for the preliminary crushing section of deep processing of wood. It can also drive by diesel engine to improve the mobility of production.

mmexport1499044926757

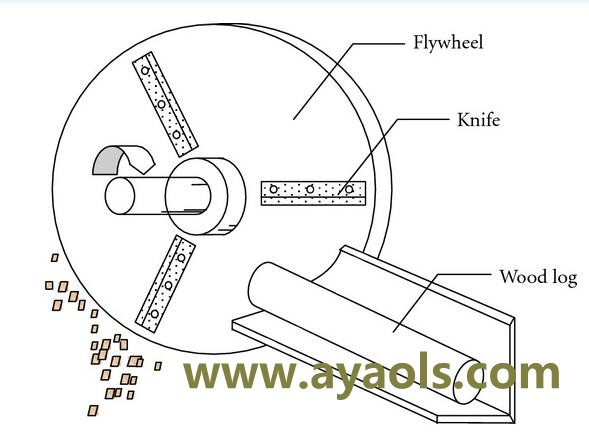

Working Principle:

The principle of production of large-scale wood chipper is similar to disc-type wood chippers. The raw materials are feed into machine through the feed conveyor, and be cut in to different size by rotating blade . To adjust cutting blade to get different   chips size,the outlet is divided into up/down feeding way, according to the need to choose.

disc chipper


Parameter

Disc Wood Chipper Motor Drive Technical Parameter:

Model

MQP1150

MQP1410

MQP1710

Cutter diameter(mm)

1000

1400

1700

Knife(Pcs)

4

6

6

Motor Power (kw)

55

90

200

Feeding hole size(mm)

320*320

420*420

620*620

Max.feeding Dia.(mm)

300

400

600

Capacity(t/h)

5-13

8-18

13-25

Dimension(m)

2.5*1.5*1.7

3*1.7*2.1

3.5*2.2*2.8
