Diesel Wood Chipper

The main purpose is to crush the branches, trim and so on into wood chips to facilitate further processing and transportation...

Counseling hotline: 0086 - 0372 2072505

Recommend similar products for you

Batch?
Features

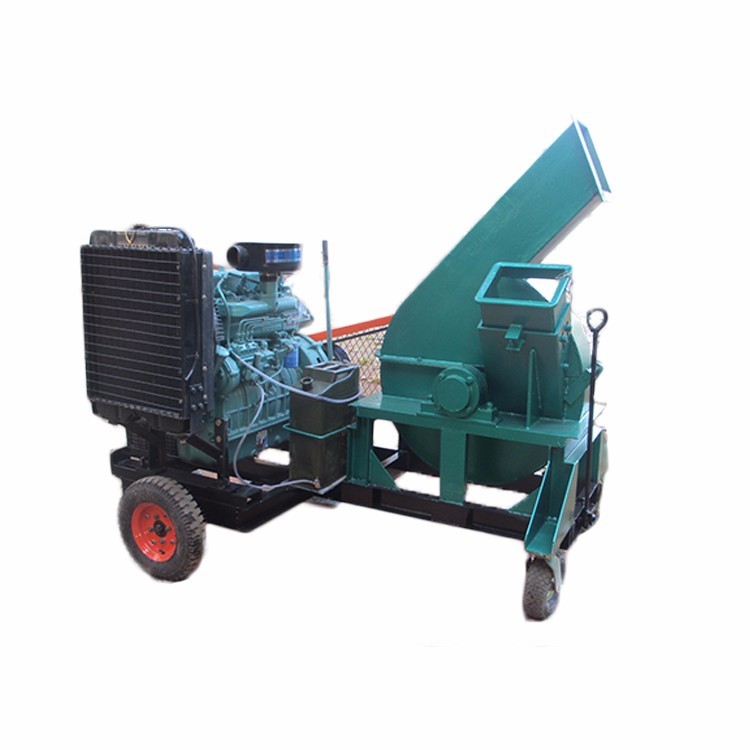

Wood Chipper Engine Drive:

Wood chipper is the necessary machine for the coarse crushing . The main purpose is to crush the branches, trim and so on into wood chips to facilitate further processing and transportation. Machine also can driven by diesel engine .


This series of disc wood chipper production in the 2 to 160 cubic meters per hour, the user can choose their own models. This chipper consist of Machine base, cutter, feed, shell, electronic control system etc.


In order to continuously meet the market high-quality, high efficiency, high-grade requirements, my company study on the series disc type wood chippers, year after year and continuously improve product performance.

The series wood chipper exported to Singapore, Indonesia, Malaysia and other countries. At present, our company wood chipper cutter with wear-resistant pad chrome, Flying knife,fixed blade , moving Knife and bolts made of special steel.


Wood Chipper Usage:

Disc wood chippers, can cut tree branch diameter below 250mm, suitable for various forestry center,pulp paper making, wood process plant, wood chips plant etc.can customized according client requirement .


Working Principle :

The wood feed is the lower feed port, and the wood is fed from the feed inlet. When the wood is in contact with the cutting blade, the cutting is cut with the high-speed rotation of the cutting blade. The chips are sent out of the cutting chamber by the high-speed flow generated by cutting blades.


Parameter

Wood Chipper Engine Drive Technical Parameter:

Model

MQ400

MQ600

MQ740

Cutter disc Dia.(MM)

400

600

740

Blade (pcs)

3

3

4

Diesel Power (hp)

10

20

40

Speed (r/min)

650

600

550

Max .Feeding Dia. mm

150

180

210

Capacity (t/h)

1

1.5

3
