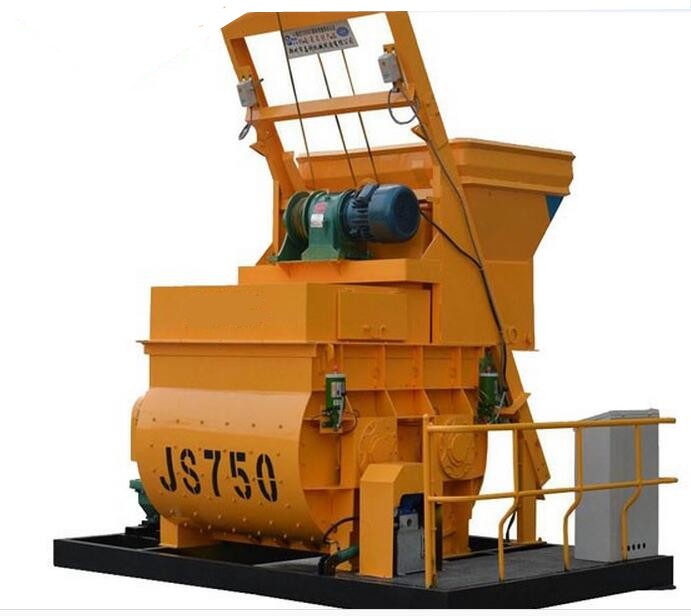

Cement mixer

Electric concrete mixer can mix dry concrete, plasticity concrete, wet concrete, light aggregate concrete and various mortars. There are high manganese wear-resisting cast steel li...

Counseling hotline: 0086 - 15981884667

Recommend similar products for you

Batch?
Features

Electric concrete mixer can mix dry concrete, plasticity concrete, wet concrete, light aggregate concrete and various mortars. There are high manganese wear-resisting cast steel lining boards and mixing blades inside the mixer, which is durable and convenient to replace. Combining with different PLD concrete batching machines,various kinds of concrete batching plant can be formed.



Application :

Used for Bridge,construction works,dock,highway,irrigation works,mixing plant,precast factory.

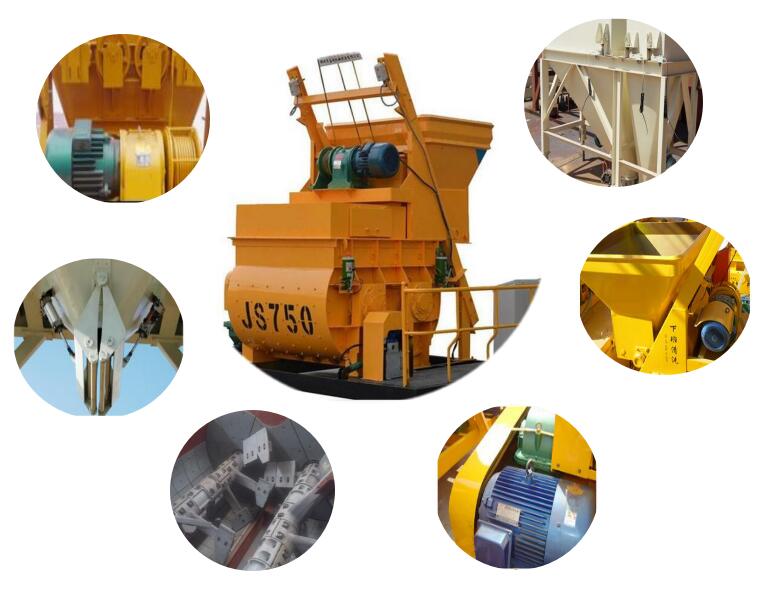

1

Mixing device

2

Shaft head seal

3

Four-class sealing protection

4.

Hydraulic discharge

5.

Gear reducer

6.

Synchronizer

7.

7.Electric Lubrication pump

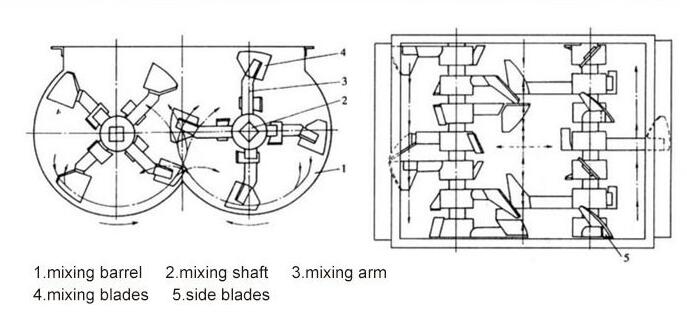

1.Mixing device

Adopt high-rigidity and high-tenacity wearable cast alloy steel to prolong the service time,which also is optimized torsional and bending strength.

2.Shaft head seal

Adopt original-imported parts to avoid cement and slurry entering in shaft-head so that extending the service life of concrete mixer.

3.Four-class sealing protection

Adopt import reliable axial seal and all sealing parts are easy to be removed and replaced.

it is also suitable for bad work conditions for little daily maintenance

4.Hydraulic discharge

Strong driving force,avoid pneumatic discharge can't discharge smoothly

because of pneumatic shortage or weak driving force;Manual discharge can be used in emergency.

5.Gear reducer

Adopt Italian BONFIGLIOLI reducer,long service life,low noise,no leak

6.Synchronizer

original imported parts to ensure the synchronous running of mixing arms

7.Electric Lubrication pump

Four Pump core respectively supply,the oil to four shaft head respectively

no need the diverter valve,reduce repair and maintence work.


Parameter

Item            Model

JS500

JS750

JS1000

JS1500

JS2000

JS3000

Charging volume(L)

800

1200

1600

2400

3200

4800

discharging volume (L)

500

750

1000

1500

2000

3000

productivity(m3/h)

≤25

≤35

≤50

≤75

≤100

≤150

Maximum aggregate size (egg/gravel mm)

80/60

80/60

80/60

80/60

80/60

80/60

Mixing blades

Rotation speed(r/min)

35

30.5

25.5

25.5

23

23

Amount

2*7

2*8

2*8

2*8

2*8

2*10

Mixing Electric Motor

model

Y180M-4-18.5

Y200L-4-30

Y200L1-6-18.5

Y225M-6-30

Y280S-6-37

Y280M-6-55

hoisting  Electric Motor

model

YEZ132S-4-5.5

YEZ132M-4-7.5

YEZ180M-4-18.5

YEZ200L1-6-22

Y280S-4-22

Y280S-4-22

Water Pump Motor

power

0.75

1.1

3

3

5.5

5.5

Hopper improve speed(m/min)

18

19.2

21.9

23

26.8

26.8

Shape dimension

(long * * wide high)

Transportation state

2786*2480*2151

4195*2300*2800

4640*2250*2250

5058*2250*2440

5058*2250*2440

4943*2850*2500

Working state

4278*2786*4605

5980*2300*6260

8765*3436*9540

9645*3436*9700

9645*3436*9700

9645*3436*9700

The quality(kg)

3900

6800

8750

11130

15000

18000

discharging height(mm)

1600/2700/3800

1600/2700/3800

1600/2700/3800

3800

3800

3800
