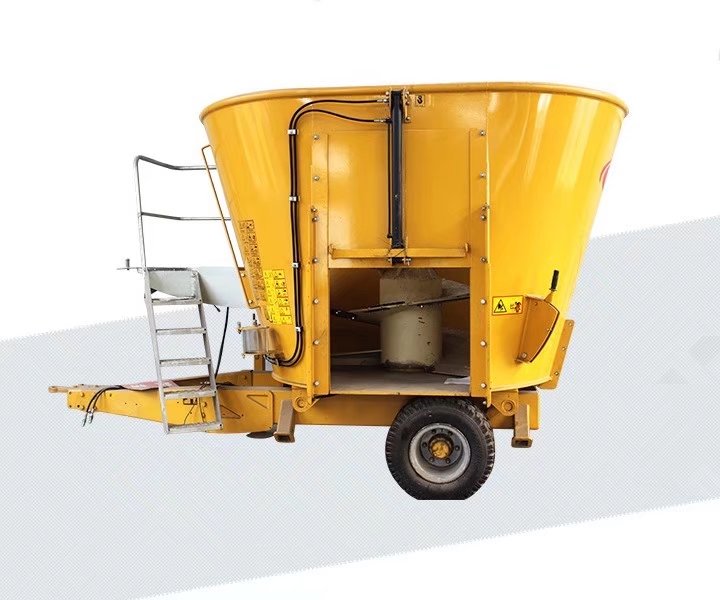

TMR Feed Mixer

PTO Type Tractor trailed vertical TMR feed mixer for cattle farm...

Counseling hotline: 0086 - 0372 2072505

Recommend similar products for you

Batch?
Features


Total Mixed Ration TMR Animal Feed Mixer PTO drive livestock feed mixer

TMR Mixer Function :

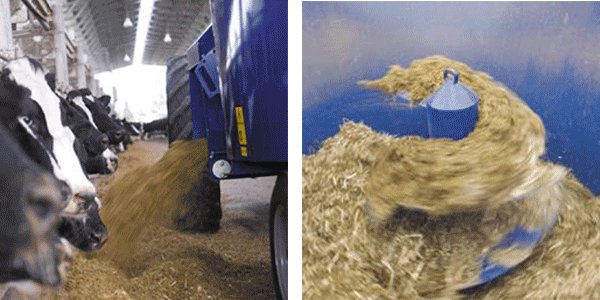

Directly mixed variety of material like: hay, farming straw, silage and other fiber feed directly into feed; Do not destroy the fiber composition

 psb (2)

1, TMR feed mixer can mixed variety of material like: hay, farming straw, silage and other fiber feed and concentrate directly mixed feed, do not destroy the fiber composition, so that the energy efficiency of the feed to maximize.

2,The machine design absorb abroad technology, with a unique design , single-arm large diameter double-power vertical mixing auger .

3, The new CE protection system.

4, Mixed uniformity ≥ 98%

5, Natural residual rate ≤ 1%

6, Mixing time: 10 - 15 min


Parameter

Model

TMR-4

TMR-6

TMR-8

Volume

4 m3

6 m3

8 m3

Power supply

Motor / PTO

Motor / PTO

Motor / PTO

Type

Vertical

Vertical

Vertical

Power

15kw

18.5 kw

22 kw

Unloading door

Hydraulic

Hydraulic

Hydraulic

Auger rpm

16.5~24.8 rpm

16.5~24.8 rpm

16.5~24.8 rpm

Speed

1470/540 rpm

1470/540 rpm

1470/540 rpm

Conveyor

Option

Option

Option

Number of Augers

1 pcs

1 pcs

1 pcs

Blade number

4

4

8

Counter blade number

2 pcs

2 pcs

2 pcs

Weighting system

optional

optional

optional

Loadcell number

3 pcs

3 pcs

3 pcs

side wall thickness

10 mm

10 mm

10 mm

Weight

1500 kg

2000 kg

3000 kg
