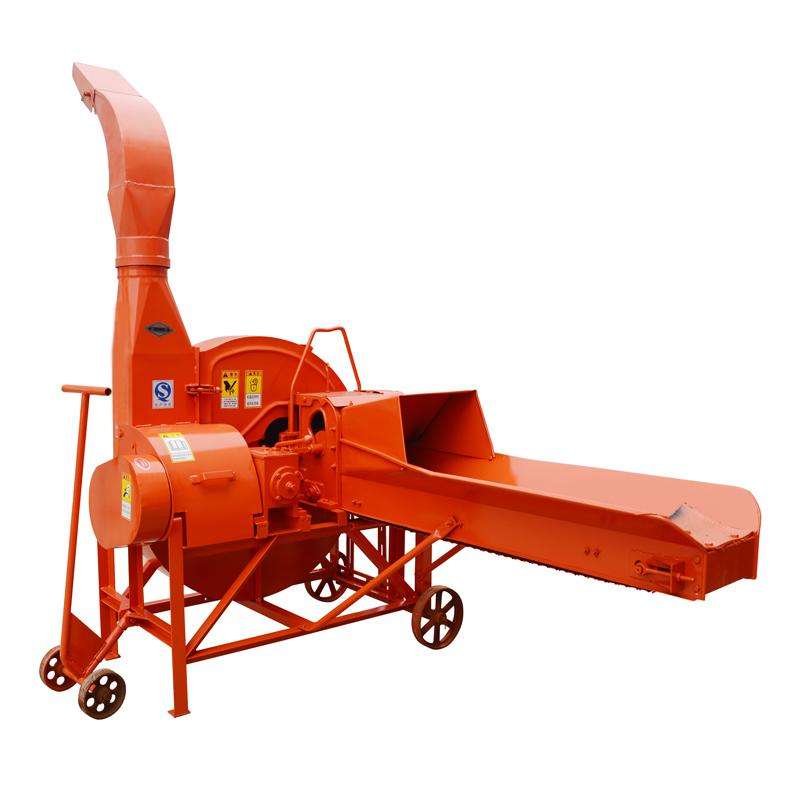

Agricultural Chaff Cutter

Chaff cutter Used for cutting green (dry) corn stalks, straw, straw and other crop stalks and pasture. Processing materials for breeding cattle, sheep, deer, horses, etc., but also processing cotton s...

Counseling hotline: 0086 - 0372 2072505

Recommend similar products for you

Batch?
Features

Agricultural Chaff Cutter

Used for cutting green (dry) corn stalks, straw, straw and other crop stalks and pasture. Processing materials for breeding cattle, sheep, deer, horses, etc., but also processing cotton stalks, branches, bark, etc., for straw power generation, refining ethanol and paper making, wood-based panels and other industries.


1Three-leaf knife plates are equipped with

strengthening ring, making it stronger and integral. Adjusting bolts are added between the knife plate and main axle, allowing more convenient movements and more convenient knife gap adjustments.

2.Advanced feeding structure with hay-conveying rollers (for whose patent we have been awarded), the cutter conveys hay automatically and smoothly at a high speed.

3.Designed with motive knife safety guide, preventing knives from knocking into each other, thus making the whole machine safe and reliable.

4.Unique gear boxes allow more accurate adjustment of processed hay length. The box is tightly sealed.

5.The transmitting section is equipped with rolling bearing and universal joint, so it is easy to take apart and the whole machine operates smoothly.

6.The advanced feeding and transmitting structure is controlled by a button, which is easy to control.

7.The blade made of high-quality steel is refined through special technical process, so it is especially wear-proof. The cutter uses high-strength bolts, and is safe and reliable.

8.As the largest type with the highest productivity in the country, it is furnished with rubber wheels, making such a giant machine easy to move .


Parameter

Agricultural Chaff Cutter Parameter:

Model

9ZC-3

9ZC-5

9ZC-8

9ZC-10

9ZC-12

9ZC-14

Power (kw/HP)

4kw/8hp

5.5kw/10hp

7.5kw/15hp

15kw/20hp

18.5kw/30hp

30kw/40hp

Knives (Pcs)

3

3

3

3

3

3

Capacity (t/h)

Dry 0.2-0.8   Wet 2-4

Dry 0.5-1

Wet 4-6

Dry 1-2

Wet 6-10

Dry 2-3

Wet 10-15

Dry3-5

Wet 10-20

Dry4-8

Wet 20-30

Dimension  (m)

1.0*0.6*1.4

1.7*1.6*2.3

2.1*1.6*2.8

2.6*2.1*4.1

2.6*2.2*4.1

4.7*2.2*4.4
