Wood Briquette Machine

screw Briquetting machine extruded wood briquette can be used as fuel for briquette boilers or boilers for heating....

Counseling hotline: 0086 - 0372 2072505

Recommend similar products for you

Batch?
Features

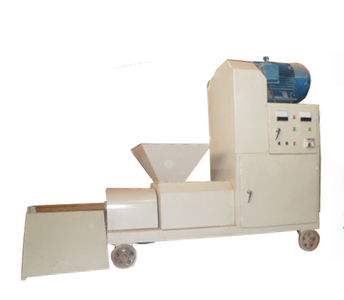

Introduction of the Wood Briquette Machine Screw Briquetting machine:

a. Raw material: Ground nut shell ,Sugarcane residue Caster Shells/Stalk Saw dust Coffee Husk Paddy Straw Sunflower Stalk Cotton Stalks Tobacco waste Mustard Stalk Jute waste Bamboo Dust Tea waste Wheat Straw Palm husk Soybeans husk Rice Husks Forestry wastes Wood Chips and many other Agro wastes.

b. This machine can be operated 16 hours per day.

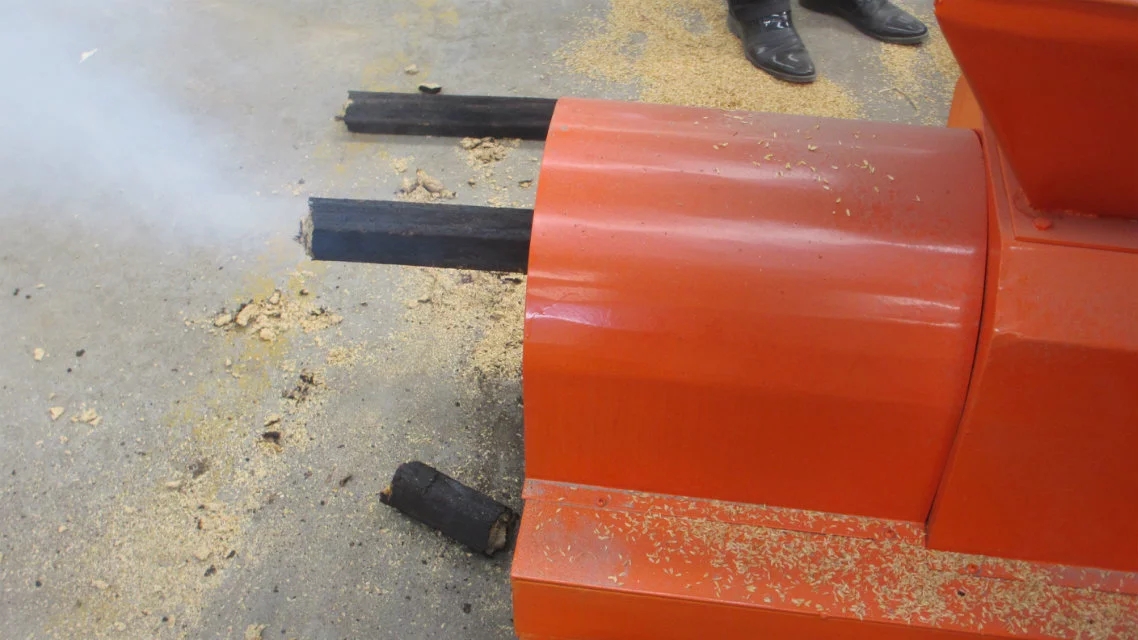

c. The extruded wood briquette can be used as fuel for briquette boilers or boilers for heating.

d.Finished product of the Screw Briquetting Machine:

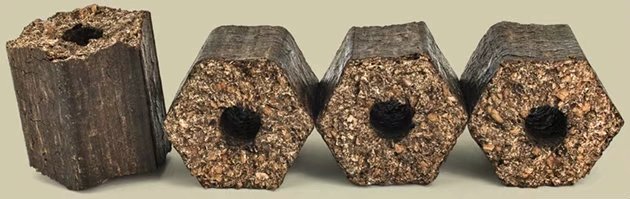

This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20mm hole through the body.

The available shape:square, hexagonal, pentagon, pentagon with edge, hexagon with edge

The available diameter could be: 50mm,55mm.60mm,65mm.70mm.80mm and so on

The available length could be :20cm,30cm, 40cm, 50cm

The feature of the final product : Specific gravity: 1300—1900kg/m

Calorific value: 4500—5000kcal/kg

011 (2)

wood briqutte machine

Features of the Wood Briquette Machine:

1.)  Widely option on raw material ,Stick shape with different diameter

2.) The density, strength and hardness of products are very high.

3.) Our briquette machine with higher capacity and lower energy consumption.

4.) Production moisture is 8-12% ,raw material size below 3-5mm,The final briquette is dia.45-80mm,capacity:120-500kg/h

5.) This series of briquette machine is a new type of wood briquette machine,the finished products are more solid.

6.) This Wood Briquette Machine with automatic temperature control system is designed to produce high density wood briquette stick from biomass.

7.)Biomass briquette and pellet machine were support by Governments in each country for making biomass fuel

8.)it not only can replaced traditional fuel,like coal,gas,oil etc.limited resources,also with low cost,and protect the environment.

wood briqutte machine (1)

Parameter

Model

50A

50B

50C

Power (kw)

15

18.5

22

Heat power (kw)

2.2*3

2.2*3

2.2*3

Max.feeding size (mm)

6

6

6

Humidity %

6-12

6-12

6-12

Forming shape

Rectangle ,hexagon,Six prismatic

Calorific value ( kcal/kg)

6000-7500kcal/kg

Specific gravity( kg/m³)

1200~1300kg/m³

Capacity (kg/h )

260-280

300-320

320-340

Weight (kg)

800

900

900

Dimension  (m)

1.6*0.65*1.4

1.7*0.65*1.4

1.9*0.7*1.5
