Feed Pellet Mill

Feed Pellet Mill is used for making animal feed pellet...

Counseling hotline: 0086 - 0372 2072505

Recommend similar products for you

Batch?
Features

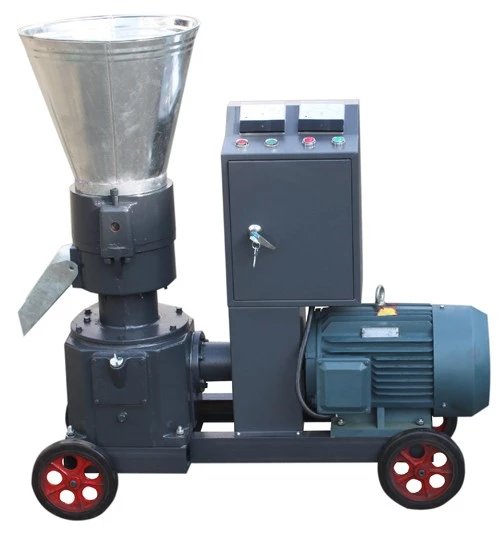

Animal feed poultry feed pellet mill machine

Pellet Mill Feature:

1.Widely option on raw material

2.Power can be electric motor or diesel engine

3.Can be used for making sawdust pellet as biomass fuel or make feed pellet as animal feed

4.Small in size ,easy operation,saving energy

5.support by Governments in each country,

6.it not only replaced traditional fuel,like coal,gas,oil etc.limited resources,also with low cost,and protect the environment.

 Best-Quality-Biofuel-Pellet-Making-Machine-for_conew1

Feed Pellet Mill Performance Features

Transmission gears made of High quality alloy steel,surface adopts carburizing and quenching treatment,precision machining by grinding,smooth transmission,low noise,large carrying capacity,low temperature rise,long life etc.

Spindle with a heavy thrust bearing,support axial force,long life span

Roller and flat die wear peace deal,both side can use the flat die ,long service life

Pellet machine uses large diameter roller,big yield,pelletizing rate is high,uniform high strength pellets

All bearings are sealed structure that effectively prevent dust,improve the working bearings,environment,extending bearing lift.

Highest grade tool steel die and rollers that are designed to fit YOUR PRODUCT.

Full consultation at NO Charge at YOUR FACILITY

Low wear of roller,dies and bearings

Do not need to add binder

Pellet diameter from 6-12mm for user select

Easier to clean than pellet machine with ring die

Small and lightweight,available for homemade or farm pellet production

if you need support on selection of Pellet Machine,contact us at sales@ayaols.com


Parameter

Model

KL-120

KL-150

KL-200

KL-230

KL -260

KL-300

Power

2.2-3 KW

4KW

7.5KW

11KW

15 KW

22 KW

Capacity

60-100 KG/H

150-220 KG/H

200-300 KG/H

300-400 KG/H

400-600 KG/H

600—800 KG/H

Moisture content %

12%-20%

10%-15%

10%-15%

10%-15%

10%-15%

10%-15%
