Biomass Pellet Machine

Application:widely used for biomass pellets from wood wastes,sawdust,bamboo powder,farm residues,agricultural residues,rice husk,straw,maize straw,corn stalk,sunflower seed shell etc....

Counseling hotline: 0086 - 0372 2072505

Recommend similar products for you

Batch?
Features

Application:

Widely used for biomass pellets from wood wastes,sawdust,bamboo powder,farm residues,agricultural residues,rice husk,straw,maize straw,corn stalk,sunflower seed shell etc.

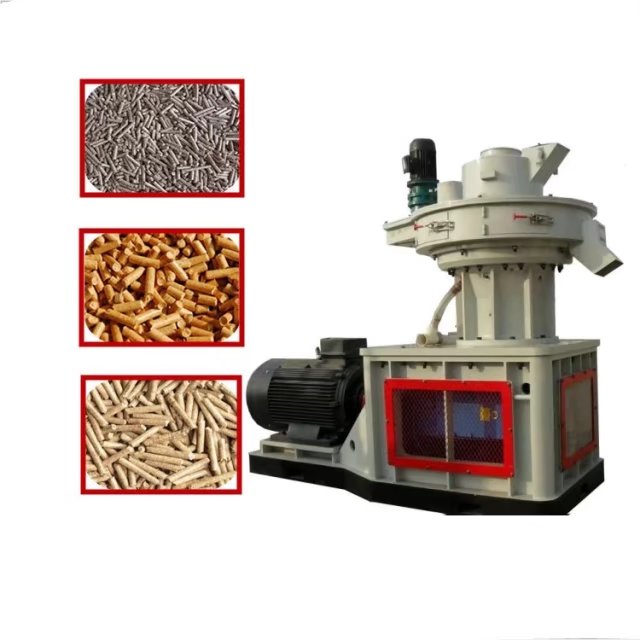

Biomass Pellet Machine

Brief introduction of Final Pellet of Biomass Pellet Machine

1.Pelletizing is the process of making waste materials into solid fuel/ animal feed.

2.The objects are used for burning purposes and feed the animals.

3.Wood Pellet is one of the most commonly used pelletizing materials.

4.Wood Pellet can be made from any type of Agro-Forestry waste

5.The machine adopts speed-adjust feeder to control the feeding capacity, and use big diameter modulator to make materials fully cured, and make the pellet smoother.

6.Requirement of feed material:feed size 3-5mm ,moisture of raw material is 12%-15%

  The formation rate reaches 98% .

  The pellet mill final size is Dia 2mm, 4mm, 6mm, 8mm, 10mm, 12mm,15mm etc.



Parameter

Model

SKL-450

SKL-560

SKL-680

SKL-850

Power (kw)

55

90

160

220

Oil pump (kw)

0.37

0.37

0.37

0.37

Screw Feeder (kw)

1.5

1.5

1.5

2.2

Conveyor power (kw)

3

3

3

3

Feed board power (kw)

1.5

1.5

1.5

1.5

Fan power ( kw)

2.2

2.2

2.2

2.2

Feeding size (mm)

2-8

2-8

2-8

2-8

Ring die inner dia.(mm)

450

560

680

850

Rotating speed (r/min)

80

80

80

80

Final size ( mm)

4-12

4-12

4-12

4-12

Output (t/h)

0.5-1

1-1.5

1.2-2.5

2-3.5

Dimension ( m)

2*1*2

2.6*1.3*2.3

2.9*1.5*2.4

3.8*1.7*3.2

Weight (Ton)

4.3

5.5

6.5

12.6
