Biomass Sawdust Pellet Machine:

Biomass sawdust Pellet Machine were making sawdust into pellet as biofuels or making pellet as animal feed


Sawdust Pellet Machine Feature:

1.Widely option on raw material,material with low cost ,and easier to get.

2.Power can be electric motor or diesel engine or PTO driven,At Client's Option

3.Can be used for making Sawdust Pellet as biomass fuel Or make feed pellet as Anmial Feed

4.Small in size ,easy operation,saving energy

5.Greatly Support by Governments in each country,

6.it not only replaced traditional fuel,like coal,gas,oil etc.limited resources,also with low cost,and protect the environment.

7.The capacity is according to the crushed material and final mesh size.


Equipped with Electric Motor:

With reasonable design, tight structure ,safety ,and durable,high efficiency on production

Whole machine drive by only one motor,with low noise,simple structure,easy operation,steady performance,high output, low cost and have good quality on final pellet.


Sawdust Pellet Machine Characteristic:

Biomass Pellet machine for making pellet as biomass fuel ,which were strongly support by Governments in each country,it not only replaced traditional fuel,like coal,gas,oil etc.limited resources,also with low cost,saving energy ,and protect the environment.

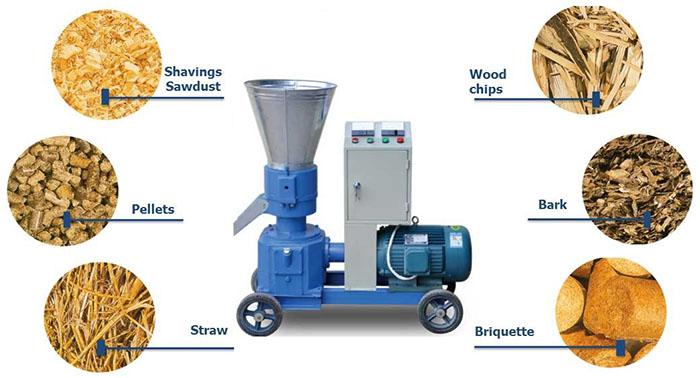

Biomass pellet machine were a kind of machine to processing raw material like ,straw,rice husk,sawdust,weed tree,peanut shell,cottonseed hull etc into pellet ,

Using pellet as fuel with the feature of clean and tidy,easy to feed,and saving labour,saving time,saving work,and energy. which were greatly changed the environment ,improve efficiency ,the lash from burning were quite few and reduce waste,


Biofuels are a renewable resource ,were better for our life also can protect our environment


Brief introduction of Final Pellet of pellet machine:

1.Pelletizing is the process of making waste materials into solid fuel/ animal feed.

2.The objects are used for burning purposes and feed the animals.

3.Wood Pellet is one of the most commonly used pelletizing materials.

4.Wood Pellet can be made from any type of Agro-Forestry waste

5.The machine adopts speed-adjust feeder to control the feeding capacity, and use big diameter modulator to make materials fully cured, and make the pellet smoother.

6.Requirement of feed material:feed size 3-5mm ,moisture of raw material is 12%-15%

  The formation rate reaches 98% .

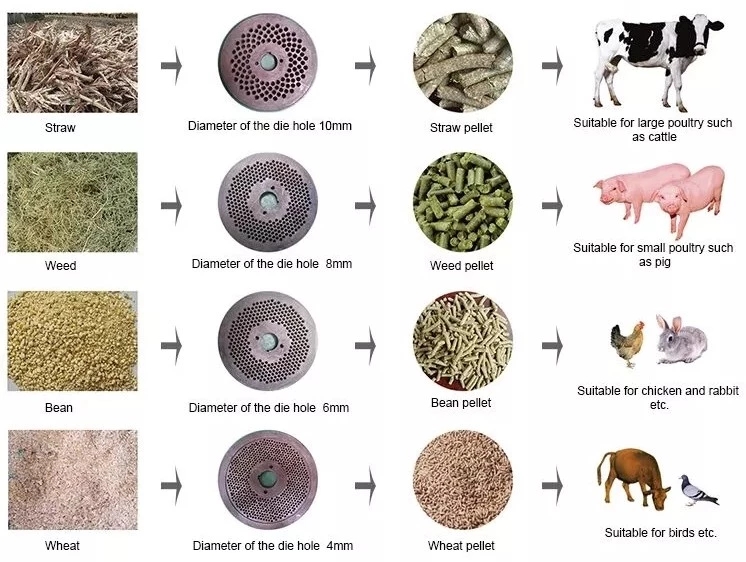

  The pellet mill final size is Dia 2mm, 4mm, 6mm, 8mm, 10mm, 12mm,15mm etc.

blob

if you need support on selection of Pellet Machine,contact us at yoki@ayaols.com

1

2 (1)

3 (2)

Parameter

Biomass Sawdust Pellet Machine Technical Parameters:

Model

Power

Capacity

Weight

N/G.W

Dimension(cm)

Feed

Sawdust

KLP-150B

4-5.5 kw

150-200

90-120

99/115kg

77*34*68

KLP-200B

7.5kw

220-350

110-180

190/210kg

100*43*95

KLP-230B

11kw

300-400

150-200

280/310kg

114*50*97

KLP-260B

15kw

400-600

200-300

300/385kg

120*50*103

KLP-300B

22kw

600-800

300-400

437/485k

132*53*107

Noted: our electrical supply is 3Phase, 380V, 50HZ in China, if the electrical supply is different with us, we will change the electrical power for you.
