Diesel Pellet Mill

Flat-die Diesel Engine Pellet Mill:This is a flat plate pellet mill with diesel engine. Due to the reasonable structure design, it has many advantages:Lower energy consumption;Pure Biomass Pellet with...

Counseling hotline: 0086 - 0372 2072505

Recommend similar products for you

Batch?
Features

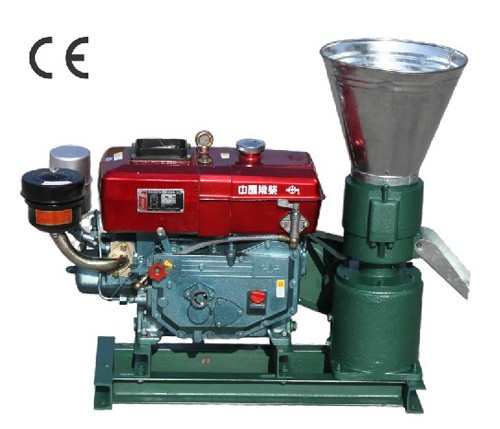

Flat-die Diesel Engine Pellet Mill:

This is a flat plate pellet mill with diesel engine. Due to the reasonable structure design, it has many advantages:

Lower energy consumption;

Pure Biomass Pellet without any additive:

Stronger spare parts;

It adopts screw-center adjusting pressure structure.the pressed rollers gap can be adjusted small or big,so it can meet the different materials demand and make sure the pelleting effect.

Pellet machine power source have wide option:by Diesel engine,Electric motor,PTO driven,

Noted:the capacity is according to the crushed material and final mesh size,

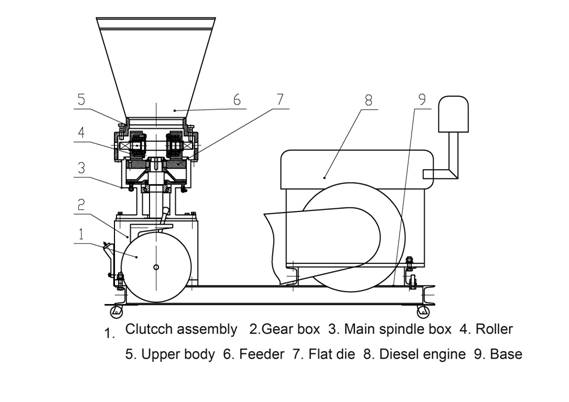

structure-of-diesel-pellet-mill

Flat-die Diesel Engine Pellet Mill Performance Features:

· Transmission gears made of High quality alloy steel,surface adopts carbonize and quenching treatment,precision machining by grinding,smooth transmission,low noise,large carrying capacity,low temperature rise,long life etc.

· Spindle with a heavy thrust bearing,support axial force,long life span

· Roller and flat die wear peace deal,both side can use the flat die ,long service life

· Pellet machine uses large diameter roller,big yield,pelletizing rate is high,uniform high strength pellets

· All bearings are sealed structure that effectively prevent dust,improve the working bearings,environment,extending bearing lift.

· Highest grade tool steel die and rollers that are designed to fit YOUR PRODUCT.

· Full consultation at NO Charge at YOUR FACILITY

· Low wear of roller,dies and bearings

· Do not need to add binder

· Pellet diameter from 6-12mm for user select

· Easier to clean than pellet machine with ring die

· Small and lightweight,available for homemade or farm pellet production


Brief introduction of Final Pellet of pellet mill:

1.Pelletizing is the process of making waste materials into solid fuel/ animal feed.

2.The objects are used for burning purposes and feed the animals.

3.Wood Pellet is one of the most commonly used pelletizing materials.

4.Wood Pellet can be made from any type of Agro-Forestry waste

5.The machine adopts speed-adjust feeder to control the feeding capacity, and use big diameter modulator to make materials fully cured, and make the pellet smoother.

6.Requirement of feed material:feed size 3-5mm ,moisture of raw material is 12%-15%

  The formation rate reaches 98% .

  The pellet mill final size is Dia 2mm, 4mm, 6mm, 8mm, 10mm, 12mm,15mm etc.

blob

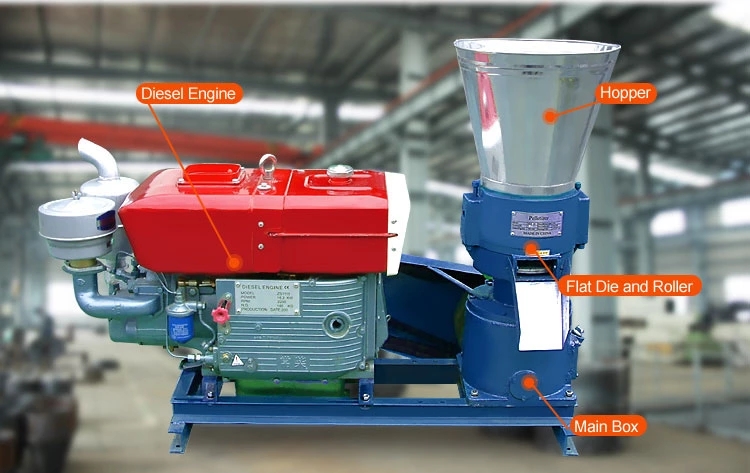

Equipped with diesel engine:

Simple structure ,can be move,simple and convenient, high output,low consumption,

Easy operation,safe and reliable .machine frame were whole coasting together,with strong structure,long working life, strong adaptability for working site.

if you need support on selection of Pellet Machine,contact us at yoki@ayaols.com.


Parameter

Flat-die Diesel Engine Pellet Mill Data Parameters:

Model

Power

Capacity

Weight

N/G.W

Dimension(cm)

Feed

Sawdust

KLD-150

8HP

100-200

50-100

130/150kg

76*43*71

KLD-200

15HP

220-350

110-180

320/360kg

118*56*102

KLD-230

22HP

300-400

150-200

360/390kg

118*56*95

KLD-260

30HP

400-600

200-300

600/630kg

184*70*116

KLD-300

55HP

600-800

300-400

730/780kg

220*60*123
