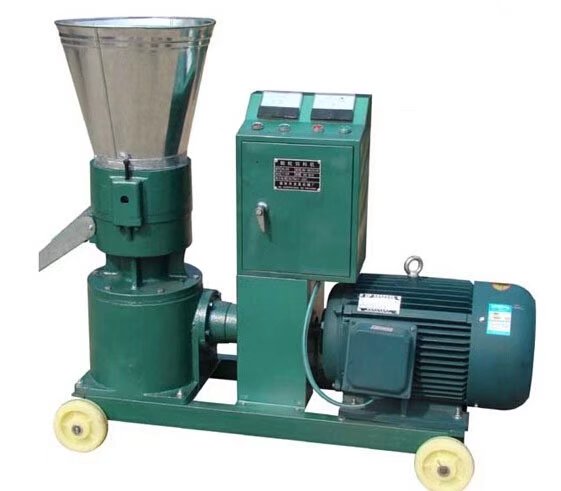

Roller Turning Type Pellet Mill:

Roller Turning Type Pellet Mill were making sawdust into pellet as biofuels


Pellet Machine Feature:

1.Widely option on raw material,material with low cost ,and easier to get.

2.Power can be electric motor or diesel engine or PTO driven,At Client's Option

3.Can be used for making Sawdust Pellet as biomass fuel Or make feed pellet as Animal Feed

4.Small in size ,easy operation,saving energy

5.Greatly Support by Governments in each country,

6.it not only replaced traditional fuel,like coal,gas,oil etc.limited resources,also with low cost,and protect the environment.

7.The capacity is according to the crushed material and final mesh size.


Roller Turning Type Pellet Mill Performance Features:

√ Transmission gears made of High quality alloy steel,surface adopts carburizing and quenching treatment,precision machining by grinding,smooth transmission,low noise,large carrying capacity,low temperature rise,long life etc.

√ Spindle with a heavy thrust bearing,support axial force,long life span

√ Roller and flat die wear peace deal,both side can use the flat die ,long service life

√ Pellet machine uses large diameter roller,big yield,pelletizing rate is high,uniform high strength pellets

√ All bearings are sealed structure that effectively prevent dust,improve the working bearings,environment,extending bearing lift.

√ Highest grade tool steel die and rollers that are designed to fit YOUR PRODUCT.

√ Full consultation at NO Charge at YOUR FACILITY

√ Low wear of roller,dies and bearings

√ Do not need to add binder

√ Pellet diameter from 6-12mm for user select

√ Easier to clean than pellet machine with ring die

√ Small and lightweight,available for homemade or farm pellet production


if you need support on selection of Roller Turning Type Pellet Mill contact us at yoki@ayaols.com .


Parameter

Roller Turning Pellet Mill Technical Parameters:

Model

Power

Engine Type

Capacity

Weight

KLR-200E

7.5kw

Electric

80-120kg/h

245/ 330kg

KLR-300E

22kw

Electric

250—350

575/ 670kg

KLR-300D

36HP

Diesel engine

250—350

--

KLR-400E

30kw

Electric

350-450

810/920 kg

KLR-400D

55HP

Diesel engine

350-450

--

Noted: our electrical supply is 3Phase, 380V, 50HZ in China, if the electrical supply is different with us, we will change the electrical power for you.
